Videojet DataFlex® 6530 (TTO)
$0.00
The Videojet DataFlex® 6530 is a high-speed thermal transfer overprinter built to offer superior performance and consistent high-quality printing. The airless, patented all-electronic system and ribbon drive can achieve print speeds up to 1000mm/s and throughputs up to 700 ppm1
The 6530 offers multiple integration options with a modular design, and is available in two printhead widths, 53mm with iAssure™ and 107mm, to meet your specific application needs. It includes, iAssureTM technology, a built-in code quality checker to help reduce waste and rework with no additional hardware, installation or training.
Product Details
Specifications
- Printhead Options: 53mm or 107mm.
- Resolution: 300 dpi (12 dots/mm).
- Technology: Airless Videojet Intelligent Motion™, iAssure™ Code Quality.
- Print Modes: Intermittent and Continuous.
- Ribbon Widths: Supports up to 55mm (53mm head) or 110mm (107mm head).
- Print Speeds (Max): Up to 1000 mm/s (53mm) / 700 mm/s (107mm).
- Throughput (Single Line): Up to 400 packs/min (53mm) / 200 packs/min (107mm).

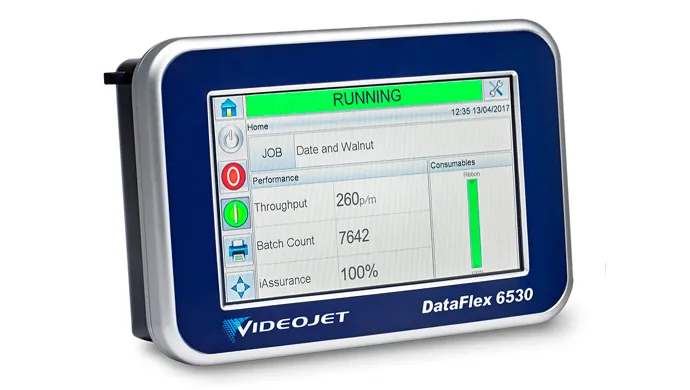

- Operator Interface: Tablet-like touchscreen with WYSIWYG preview, full diagnostics, password protection.
- Connectivity: Up to 4 printers controlled by one CLARiTY™ unit.
- Print Area: Varies by mode (e.g., 53mm continuous: 53mm x 300mm).
- Barcodes: Supports standard 1D (EAN, UPC, Code 39/128) and 2D composite codes.
Benefits
Uptime advantage
- Reduce costs and downtime, maximize printhead life and gain consistent print quality thanks to airless Videojet Intelligent Motion™ technology
- Up to 1,200m ribbon capacity and a variety of ribbon economy modes help maximize the time between ribbon changeovers
Code Assurance
- Videojet iAssure™ technology*, a built-in code quality checker, helps reduce waste and rework with no additional hardware, installation or training
- Videojet CLARiTY™ software helps ensure the right code is consistently printed on the right product
Easy usability
- Simple operator interface
- Designed to withstand tough production line environments
- Minimal wear parts are easy to change out, improving production line uptime
Built-in productivity
- Using default settings and no factory air gauge, you can maintain consistent code quality and avoid conventional air and energy settings that operators might over-adjust
- Quickly discover code legibility issues that indicate the potential need for printer maintenance
- Industry-leading simple cassette change designed for fast ribbon replacement to maximize uptime
- 25% faster throughput than previous Videojet TTO models
